1200 KW-100000 WTawm -grid Transformer-raws li Tsawg zaus Hnub Ci Inverter Bulit-hauv MPPT Controller

Tsim los ntawm Tseeb AI Power Management Algorithm

Kev them nyiaj zoo dua thiab tso tawm lub roj teeb, ua kom lub zog lithium roj teeb, ncua sijhawm lithium roj teeb Passivation, thiab tuaj yeem txuas ntxiv roj teeb lub neej los ntawm ib qho -Peb; Nruab nrog Loongson A1200 DSP Digital CPU

Kev tiv thaiv ntau yam, Siv Lub Lnitiative los thaiv qhov kev phom sij thiab khiav haujlwm ruaj khov ntawm koj cov khoom siv.

Inverter Kev Lag Luam Innovation: Tshwj Xeeb Toroidal Transformer Tsim

Tsawg tsis muaj-load poob, tsawg dua ib nrab ntawm tib yam - lub zog siab - cov tshuab zaus, Superior tiv thaiv - cuam tshuam kev ua haujlwm, Muaj peev xwm tshaj dhau.

Solar System Operation Diagram

Hardcore Siab-Power Output|Ib qho khoom siv rau txhua tus -Scenario Power Supply, sib xws nrog inductive Loads xws li Electric Drills, Dej twj tso kua mis, Cua Txias thiab lub rhaub dej

Ntau yam kev sib txuas lus

Txhawb Lithium Roj Teeb Bms Kev Sib Txuas Lus, Kev Sib Txuas Sab Nraud Wifi, Thiab Lub Tshuab Hluav Taws Xob Pib -Pib Qhuav Hu Ua Haujlwm.

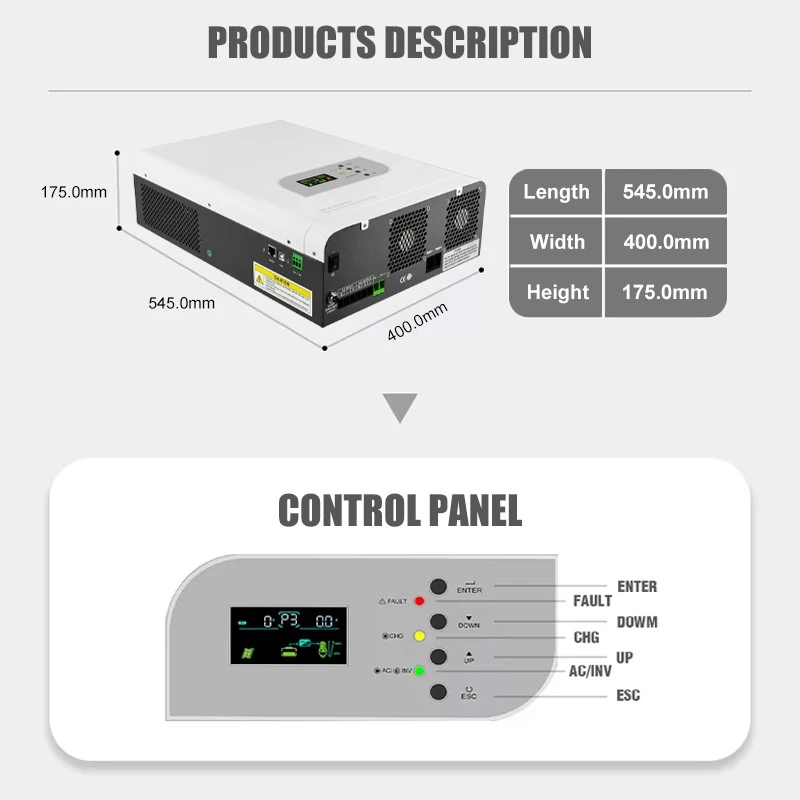

Khoom Dimension Thiab Paub meej

Craftsmanship Exquisite Nyob rau hauv txhua yam nthuav dav, tsim kom ntev -Lus Durability

Roj teeb Chaw nres nkoj & WiFi (yeem)

Full -Txuas Kev Sib Txuas Kev Pabcuam|Wired + Wireless Dual Solutions, Tsis muaj kev txwv Scene.

Kev pabcuam OEM / ODM

Peb txhawb cov kev pab cuam kho kom haum, tsis hais cov khoom dab tsi, xim dab tsi, yam tshwj xeeb, Koj Inverter, Koj Cov Cai!

Ntau lawm Parameters

Qauv	KK9680-1.2KW/40A	KK9681-1.2KW/60A	KK9682-1.2KW/24V	KK9683-1.6KW/24V	KK9684-2.4KW/24V	KK9685-3KW/24V	KK9686-4KW/48V	KK9687-5KW/48V	KK9688-6.4KW/48V	KK9689-8KW/48V	KK9690-10KW/48V
Lub zog nkag	220VAC (Standard) / 110VAC (Customized)
Input Voltage Range	220V Model: 154–264VAC ± 3V (Ntau hom) / 185–264VAC ± 3V (UPS Model) 110V Qauv: 77–132VAC ± 3V (Normal Mode) / 92–132VAC ± 3V (UPS Model)
Tso zis zaus	50/60Hz ± 5%
Rated tso zis zog	1200W		1200W	1600W	2400W	3000W	4000W	5000W	6400W	8000W	10000W
Output Voltage Nyob rau hauv Mains Supply	Cov zis voltage yog synchronized nrog lub input voltage nyob rau hauv mains hom.
Tso zis zaus raws li Mains Supply	Cov zis zaus yog synchronized nrog input zaus nyob rau hauv mains hom.
Cov zis hluav taws xob hauv Inverter hom	220VAC ± 10% (110VAC ± 10%)
Tso zis zaus hauv Inverter hom	50HZ lossis 60HZ ± 1%
Tso zis Waveform hauv Inverter hom	Pure Sine Wave
Hom roj teeb	External Lead-Acid Battery, Dej nyab Lead-Acid Battery
Roj teeb Voltage	12 VDC		24 VDC				48 VDC
Lub roj teeb them hluav taws xob	13.7 VDC		27.4 VDC				54,8vdc ua
Maximum PV input zog	540W	800W	1600W				3200W	6400W
PV Input Voltage Ntau	16V-55VDC	16V-80VDC	30V-150VDC				60V-150VDC
Qhov siab tshaj plaws PV Input Voltage	55vdc ua	80 VDC	150 VDC				150 VDC
Optimal Vmp Kev Ua Haujlwm Ntau	18V-30VDC		30-105VDC				60-105VDC
Maximum Solar Charging Tam sim no	40A	60A	60A	60A	60A	60A	60A	120A
Hloov Sijhawm	Tsawg dua lossis sib npaug rau 10ms (UPS hom) / Tsawg dua lossis sib npaug rau 20ms (INV hom)
Peak Load Ratio	(MAX) 3:1
Kev tiv thaiv muaj nuj nqi	Mains Hom: Input Overcurrent Protection ntawm Tsis muaj -Fuse Breaker
	Inverter hom: Kev tiv thaiv tshaj, luv-Kev tiv thaiv Circuit Court, Tsawg-Voltage Protection, Rov qab Polarity Protection (Fuse)
Cov xwm txheej Display	Xim Segment LCD Screen + LED Indicators
	Tsis muaj xws li AC voltage, AC zaus, PV voltage, PV tam sim no, tso zis voltage, tso zis zaus, roj teeb voltage, thiab load tam sim no tuaj yeem saib ntawm nplooj ntawv - tig khawm.
	LED qhov taw qhia qhia cov khoom tseem ceeb raws li txoj cai, them raws li txoj cai, inverter raws li txoj cai thiab qhov teeb meem txhaum cai
Audio Prompt	Lub buzzer emits lub tswb sib txawv raws li cov lej txhaum, uas txawv ntawm cov suab ntev thiab luv.
Ua haujlwm kub	-10℃~ 50 degree
Cia Kub	-15 ° ~ 45 ° C
txheeb ze humidity	-10℃~ 90 degree, Tsis-condensing
Lub suab nrov	45 dB
Khoom Dimensions (mm)	345255125		465310135					545400175
Pob Dimensions (mm)	435333193		520385195					657504257
NW (kg)	9.73		11.72	14.74	15.39	18.97	20.08	27.59	34.86	39.23	50.68
GW (kg)	10.54		13.05	15.96	16.63	20.22	21.3	30.61	37.18	42.69	53.87
