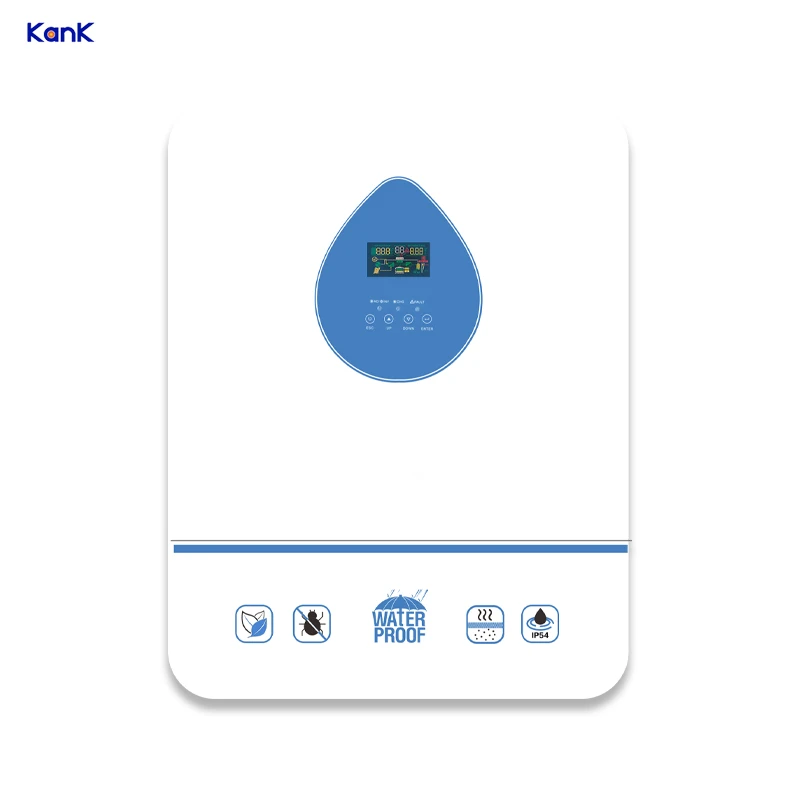

Xaiv Peb 4kw / 6.2kw / 11kw Hybrid Grid-Tied/Off-Grid Inverter - Qhov Kev Txiav Txim Siab Rau Koj Cov Kev Xav Tau Zog
Hybrid Solar Inverters Khoom nta
IP54-rated rau kev teeb tsa sab nraum zoov, tsim los ua haujlwm hnyav.
Cov qauv no yog nruab nrog lub tshuab ua-hauv plua plav lim, IP54- ntsuas rau plua plav, tsis muaj dej, kab- pov thawj, Tiv thaiv ntsev tsuag thiab corrosion- tiv thaiv kev ua haujlwm, yoog rau ntau qhov chaw hnyav. Cov khoom yog ruaj thiab ntau hassle-dawb.
Tawm -Grid & Grid-Tied Dual Modes, Adaptable mus txawv Grid Scenario
Thaum nyob rau hauv daim phiaj-tied hom, tshaj PV fais fab yog tawm tswv yim rau hauv daim phiaj- txiav nqi hluav taws xob txhua hli los ntawm ib nrab-thiab CT anti-backflow muaj nuj nqi yog txaus siab.Thaum fais fab tuag lossis tsis muaj kab sib chaws nkag, nws cia li hloov mus rau - hom kab sib chaws: fridges txuas ntxiv ua haujlwm, thiab tsis muaj kev ntshai dua.
Wi-Fi Monitoring LCD Visual Interaction
Sab nraud Wi-Fi kev txhawb nqa muaj, tso cai rau koj los kuaj xyuas txhua hnub txhua hli, thiab tsim hluav taws xob txhua xyoo ntawm APP; lub LCD npo qhia 6 qhov tseem ceeb tsis nyob rau lub sijhawm, suav nrog PV input.load fais fab, thiab kev hloov dua siab tshiab.
Txog li 9 units kev sib txuas ua ke
Ultra- tso zis ntau zog, kov yeej cov kev cov nyom ntawm siab -load fais fab mov;
Tus nqi -zoo & npaum, txo cov nqi thiab txhawb kev ua haujlwm zoo;
Intelligent parallel lag luam technology, nyab xeeb, txhim khu kev qha thiab yooj yim los tswj
Roj teeb -Kev Ua Haujlwm Dawb Dual PV Inputs
Hauv roj teeb - cov xwm txheej pub dawb, koj tuaj yeem siv PV fais fab ncaj qha txawm tias muaj hluav taws xob poob rau hnub ci; nrog lub roj teeb txuas nrog, ob lub PV inputs ua kom lub zog them tam sim no txog li 150A kom them lub roj teeb sai sai - tsis muaj kev txhawj xeeb ntxiv txog kev siv hluav taws xob hmo ntuj.
Qhov tshwm sim & Kev Ua Haujlwm Taw Qhia
Ergonomically tsim nrog phab ntsa -mounted qauv kom yooj yim installation thiab ua haujlwm.
"Txhob txhawj-Kev xaiv pub dawb" rau Hla- Ciam Teb Export
Ua kom tiav cov kev tsim nyog xa tawm, kev pabcuam tau lees paub, thiab kev thaj yeeb nyab xeeb ntxiv rau tom qab - kev txhawb nqa muag.
Kev pabcuam OEM / ODM
Customizable Parameters, Hom Labeling muaj, haum rau txhua qhov kev lag luam.
Ntau lawm Parameters
|
Qauv |
KK9666-4 KW |
KK9667-6.2 KW |
KK9668-11 KW |
||
|
Tswv yim |
Hom ntawv nkag |
L+N+PE |
|||
|
Rated input voltage |
220/230/240VAC |
||||
|
Voltage ntau |
90-280VAC ± 3V (Ntau hom) |
||||
|
Ntau zaus |
50Hz / 60Hz (Txhim kho) |
||||
|
Tso zis |
Rated zog |
Roj teeb inverter |
4000W |
6200W |
11000W |
|
Rated zog |
Photovoltaic inverter |
4500W |
6500W |
15000W |
|
|
Output voltage |
220/230/240VAC ± 5% |
||||
|
Tso zis zaus |
50/60Hz ± 0.1% |
||||
|
Wave form |
Ntshiab sine yoj |
||||
|
Hloov lub sijhawm (kho tau) |
Cov cuab yeej siv computer 10 ms, khoom siv hauv tsev 20ms |
||||
|
Peak zog |
8 000 VA |
12 400 VA |
22 000 VA |
||
|
Tshaj peev xwm |
Battery Mode: 11s @105% ~ 150% Load; 2s @150% ~ 200% Load; 400ms@ >200% Load |
||||
|
Daim phiaj |
Output voltage |
220/230/240VAC |
|||
|
Ntau qhov voltage pub rau hauv daim phiaj fais fab |
170-265VAC |
||||
|
Pub nyob rau hauv ntau zaus ntawm daim phiaj fais fab |
49-51 ± 1 Hz / 59-61 ± 1 Hz |
||||
|
Nominal tso zis tam sim no |
17.4A |
26.9A |
47.8A |
||
|
Lub zog muaj zog ntau yam |
>0.99 |
||||
|
Kev hloov pauv siab tshaj plaws (DC / AC) |
98% |
||||
|
Roj teeb |
Rated voltage |
24 vdc |
48vd wb |
48vd wb |
|
|
Tsis tu ncua voltage them voltage (adjustable) |
28.2vd wb |
56.4v wb |
56.4v wb |
||
|
Floating charging voltage (adjustable) |
27 vdc |
54vd wb |
54vd wb |
||
|
Kev them nyiaj |
Txoj kev them nyiaj PV |
MPPT |
MPPT |
MPPT |
|
|
PV siab tshaj input zog |
6500W |
8500W |
2 ×7500W |
||
|
MPPT Input voltage ntau |
60-500 Vdc |
90 ~ 500VDC |
|||
|
Qhov zoo tshaj plaws Vmp kev khiav hauj lwm ntau yam |
300 ~ 400VDC |
360 ~ 430Vdc |
|||
|
Qhov siab tshaj plaws PV input voltage |
500 Vdc |
||||
|
Maximum PV input tam sim no |
27A |
27A/27A |
|||
|
Qhov siab tshaj plaws PV them tam sim no |
120A |
150A |
|||
|
Maximum mains them tam sim no |
100A |
150A |
|||
|
Zaub |
Interface LCD |
tuaj yeem tso saib ua haujlwm hom / thauj khoom / tawm tswv yim / tso zis, thiab lwm yam |
|||
|
Interface |
Rs 232 |
Baud nqi 2400 |
|||
|
Expansion slot kev sib txuas lus interface |
Lithium roj teeb BMS daim npav sib txuas lus, WI FI daim npav, daim npav tiv tauj qhuav, thiab lwm yam |
||||
|
Parallel interface |
TSIS MUAJ |
YOG |
|||
|
Evi lub hlwb |
Ambient kub |
-10 ~ 50 degree |
|||
|
Kev khiav hauj lwm ib puag ncig humidity |
20% ~ 95% (tsis muaj condensing) |
||||
|
Cia kub |
-15 ~ 60 degree |
||||
|
Qhov siab |
Qhov siab yuav tsum tsis pub tshaj 1000m, qhov ntsuas siab tshaj 1000m, 4000m max, raws li IEC62040 |
||||
|
Suab nrov |
Tsawg dua lossis sib npaug li 50db |
||||
|
Lub cev |
Kev tiv thaiv qib |
Tus IP 54 |
|||
|
Khoom Dimensions |
528*411*139 |
662*432*159/23.73 |
|||
|
Pob Dimensions |
660*508*234 |
790*525*262 |
|||
|
NW (kg) |
/ |
14.15 |
23.73 |
||
|
GW (kg) |
/ |
17.68 |
27.03 |
||
|
Cov qauv thiab ntawv pov thawj |
EN 60335-2-29, IEC 60335-2-29, IEC 62109-1 |
||||
